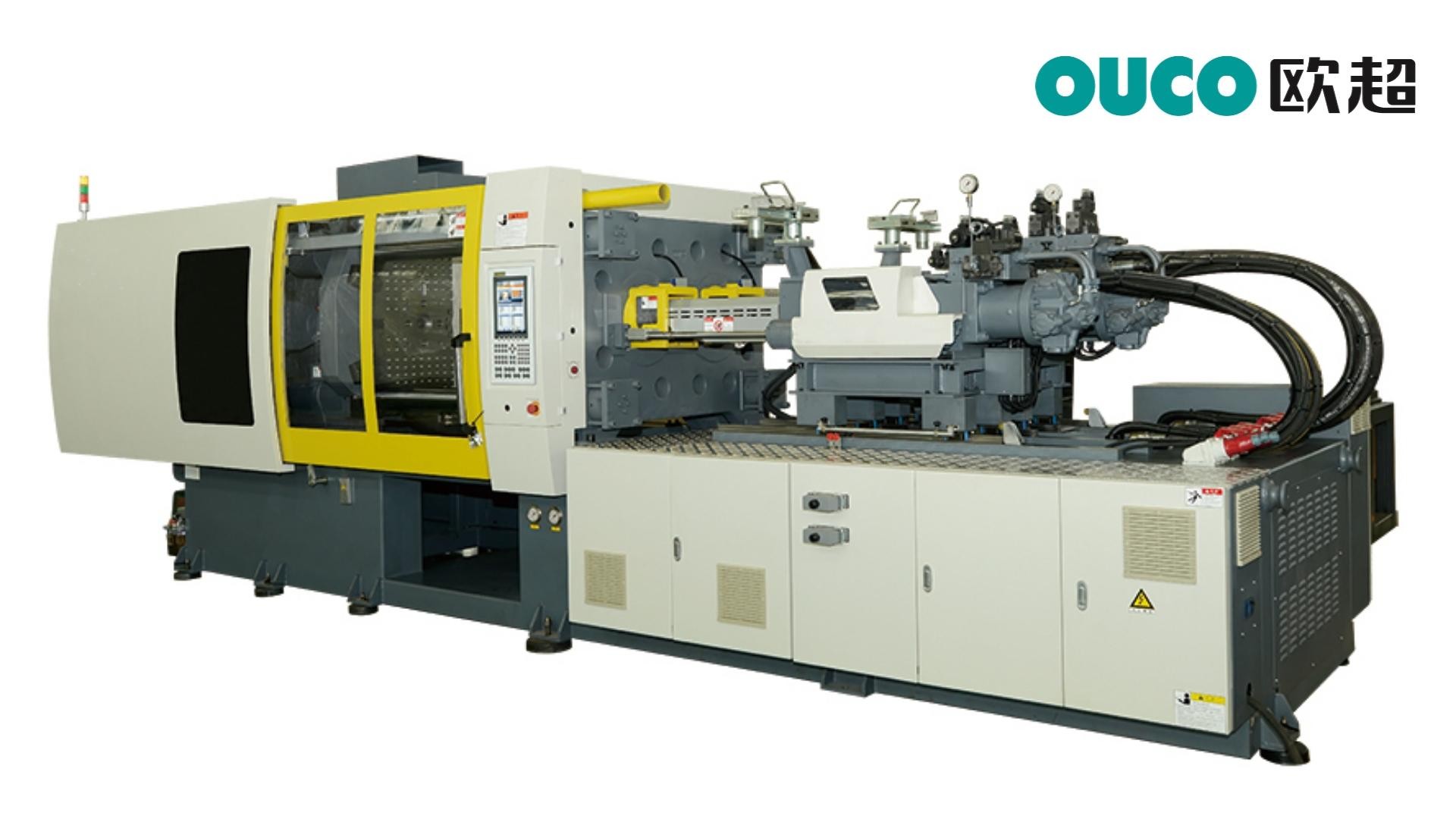

| GH Hybrid Series | ||||||||||||||
| Machine Model | CWI-220GH | CWI-280GH | CWI-350GH | CWI-450GH | ||||||||||
| CLAMPING | Kn | Clamping Force | 2200 | 2800 | 3500 | 4500 | ||||||||
| mm | Space Between Tie-bars | 570×570 | 630×630 | 710×710 | 820×820 | |||||||||
| mm | Clamping Stroke | 500 | 550 | 610 | 790 | |||||||||
| mm | Mould Thickness Max | 600 | 650 | 720 | 800 | |||||||||
| mm | Mould Thickness Min | 220 | 240 | 260 | 300 | |||||||||

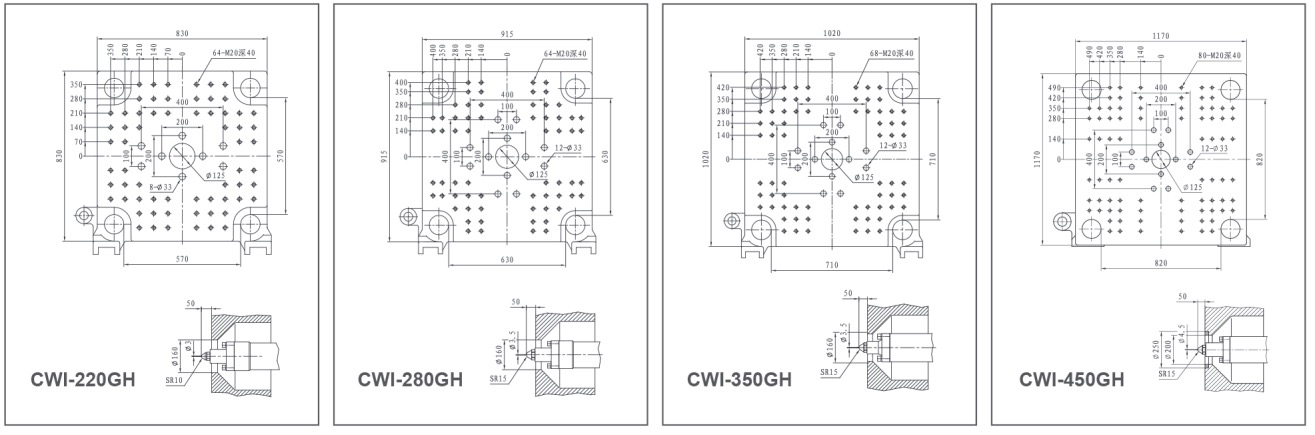

| mm | Size of Platen | 830×830 | 915×915 | 1020×1020 | 1170×1170 | |||||||||
| mm | Ejector Stroke | 170 | 170 | 200 | 220 | |||||||||
| Kn | Ejector Force | 76 | 76 | 76 | 113 | |||||||||
| Ejector Quantily | 9 | 13 | 13 | 13 | ||||||||||
| INJECTION | Injection Unit | 650IH | 860IH | 860IH | 860IH | |||||||||
| mm | Screw Diameter | 35 | 40 | 45 | 45 | 50 | 55 | 45 | 50 | 55 | 45 | 50 | 55 | |
| Screw L/D ratio | 24.3 | 23.7 | 21 | 23.3 | 21 | 18.9 | 23.3 | 21 | 18.9 | 23.3 | 21 | 18.9 | ||
| cm3 | Shot Size | 173 | 226 | 286 | 349 | 431 | 518 | 349 | 431 | 518 | 349 | 431 | 518 | |
| (PS)g | Shot Weight | 157 | 206 | 260 | 318 | 392 | 471 | 318 | 392 | 471 | 318 | 392 | 471 | |
| oz | Shot Weight | 5.6 | 7.3 | 9.2 | 11.2 | 13.8 | 16.6 | 11.2 | 13.8 | 16.6 | 11.2 | 13.8 | 16.6 | |
| Mpa | Injection Pressure | 270 | 207 | 158 | 239 | 194 | 157 | 239 | 194 | 157 | 239 | 194 | 157 | |
| mm/s | Injection Speed | 300 | 300 | 300 | 300 | |||||||||
| cm3/s | Injection Rate | 287 | 376 | 477 | 477 | 588 | 712 | 477 | 588 | 712 | 477 | 588 | 712 | |
| rpm | Screw Speed | 300 | 300 | 300 | 300 | |||||||||
| OTHERS | Kw | Motor Power | 22/42 | 30/75 | 30/75 | 30/75 | ||||||||
| L/min | Oil Pump Displacement | 139 | 220 | 220 | 220 | |||||||||
| Kw | Heater Power | 10.87 | 13 | 13 | 13 | |||||||||
| ton | Machine Weight | 7.5 | 11.8 | 13 | 13 | |||||||||
| (L×W×H) mm | Machine Dimension | 5830×1640×1870 | 6375×1680×2075 | 6750×1920×2350 | 7960×2100×2460 | |||||||||
